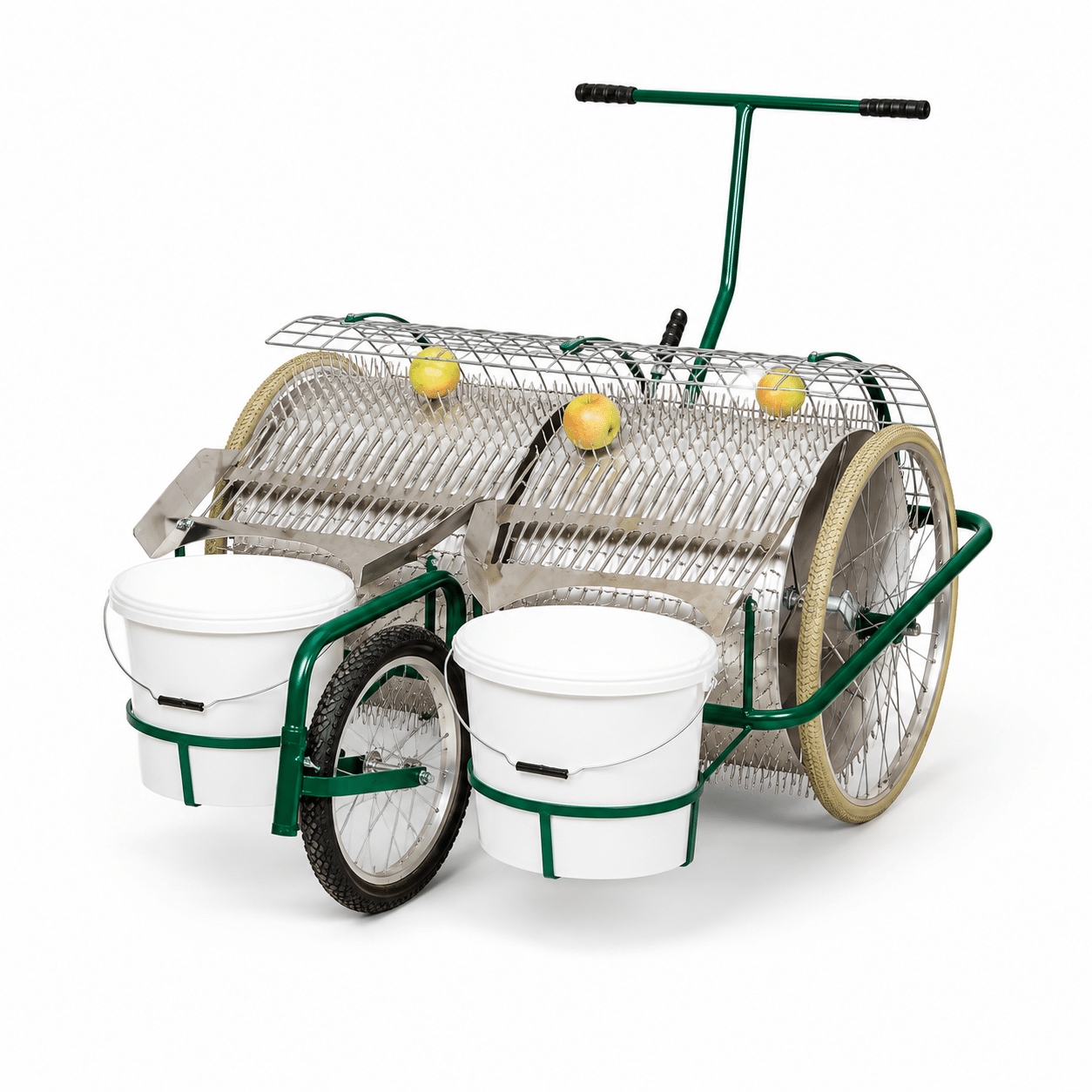

Apple & Pear Fruit Collector – Type 1100

With its generous 92 cm working width, the Type 1100 is designed for fast and efficient collection of fallen apples and pears in orchards, farms and larger gardens. The wider collecting area allows significantly more ground to be covered with each pass, reducing the time and physical effort required during the harvesting season.

The machine uses height-adjustable stainless steel pin drums with approximately 25 × 28 mm pin spacing, making it suitable for apples and pears approximately 5–15 cm in diameter. Each collecting drum has its own individual suspension, allowing the drums to adjust independently to changes in ground level, uneven terrain and different fruit sizes.

As the machine is pushed across the orchard floor, the rotating drums lift the fruit from the ground and deposit it into the two removable 18-litre collection containers. With a total collection capacity of 36 litres, the Type 1100 can collect larger quantities of fruit before the containers need to be emptied.

A 360-degree steerable front wheel makes the Type 1100 easy to manoeuvre around trees, branches and small obstacles. The front wheel can also be anchored, providing additional stability when required. Large 24-inch solid rubber wheels support the machine and allow it to travel smoothly over orchard ground.

Both the steering handle and pin drums are height adjustable, allowing the machine to be set up for comfortable operation and suitable ground clearance. The simple manual design requires no fuel, electricity or batteries, making the Type 1100 a reliable and economical solution for seasonal fruit collection.

Whether you are producing apple juice, cider, perry, preserves or other fruit products, the Type 1100 helps reduce the repetitive bending and manual labour normally involved in collecting fallen fruit from the orchard floor.

Key Features

• Designed for collecting fallen apples and pears.
• Ideal for orchards, farms, cider producers and juice makers.
• Suitable for fruit approximately 5–15 cm in diameter.
• Wide 92 cm working width for efficient fruit collection.
• Stainless steel pin drums with approximately 25 × 28 mm pin spacing.
• Individually suspended collecting drums adapt independently to uneven ground.
• Two removable 18-litre collection containers.
• Total collection capacity of 36 litres.
• Height-adjustable pin drums for different ground conditions and fruit sizes.
• Height-adjustable steering handle for comfortable operation.
• 360-degree steerable front wheel for easy manoeuvring.
• Front wheel can be anchored for additional stability.
• Large 24-inch solid rubber wheels.
• Suitable for use on uneven orchard ground.
• No fuel, electricity or batteries required.
• Strong, simple and low-maintenance construction.
